    4 Ports Ganged Rj45 POE Magjack 10/100/1000 Base -T Tab Up RJ45 Jack With LED

    1X4 Ports Tab Up POE RJ45 Connector 15U" Gold Plating Hubs 8P8C Jack




    1. POE RJ45 Connector Materials

    • RJ45 Housing: Class Filled PA46 ( Black ) UL94V-0 (ROHS)
    • RJ45 Contacting: 0.35mm phoshpor Bronze ( C5210 ) Plating over Nickel (ROHS)
    • RJ45 Insert: Class Filled PA46 ( Black ) UL94V-0 (ROHS)
    • RJ45 Solder PIN: 0.35mm Thickness Phos - Bronze ( C2680)
    • RJ45 Sheliding: 0.2mm thickness with Brass
    • Contact: Phosphor Bronze, 50-100 Microinches Min, Overall Ductile Nickel Underplate with selected 30 Microinches Gold At Mating Interface;
    • Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
    • The Part is recommended for wave soldering process peak soldering temperature is 260 ℃ MAX. 10 Seconds Max;
    • Operating Temperature: 0 to 70 ℃, Storage Temperature : -40 to 85 ℃



    2. POE RJ45 Connector Product ( JGCA4T1004-GY ) Structure:

    • 4 ports 1 X 4 Ganged RJ45 Connector
    • RJ45 Shielding : 0.2mm thickness with Brass,
    • Mount Type : Through hole
    • Latch Up / Tab Up
    • With 1000 Transformer ( Magnetic )
    • With POE + Founction
    • With EMI Finger ( Can be designed without EMI Finger )
    • Without Light Pipe / Light Guide, can be designed as required
    • With Green Yellow LED ( Can be designed as required )
    • Lenght :33.02 mm ( 1.3 inch )
    • Width : 58.24 mm ( 2.293 inch )
    • Height : 13.6mm ( 0.535 inch )
    • Contact Finish : With 15 u" Gold Plating ( also can be with 6u" , 30u" , 50u" Gold Plating )





    3. 1 X 4 ports POE RJ45 Connector ( JGCA4T1004-GY ) Attributes:

    Part NumberJGCA4T1004-GYBrandGLGNET
    Place of OriginGuangdong of ChinaCertificationCE /UL/FCC/Reach/RoHS
    Product Type RJ45 Modular JackConnector StyleRJ45
    Jack TypeRJ45Connector Type Modular Jack
    Latch StyleStandardLatchUp
    FilterWith FilterLED OptionCan be with or without LED
    LED ColorCan Be Green/Yellow/ Orange/ Red etcPanel StopsWithout Panel Stops
    ShieldedYesApplies To Ethernet Hubs, Splitters, Switchers
    Performance Speed1000 Base TGrounding OptionsPanel Ground and PCB Ground
    Port Configuration 4Number of Positions RJ45 with 8P8C
    Jack Configuration1 x 4Terminals per PortRJ45 : 8
    Shield MaterialBrassPCB Mounting Orientation Side Entry (Right Angle)
    Contact Mating Area Plating Material Gold 6u/15u/30u/50uContact Base Material Phosphor Bronze
    Solder Tail Contact Plating Material Tin-Lead over NickelPCB Mounting Style Through Hole
    Termination Method to PC Board Through HoleBoard LockWithout Board Lock
    Housing Material Rj45 : Glass filled PA46 ( Black )Housing ColorBlack
    Housing Material  TemperatureStandardUL Flammability Rating UL 94V-0



    4. 1 X 4 ports POE RJ45 Connector Applications


    Networking equipment

    • Hubs
    • Switches
    • Routers
    • PCs
    • Servers
    • Workstations
    • Motherboards



    Equipment utilizing a network port

    • NICs
    • Servers
    • PCs
    • Consumer Devices



    5. 1 X 4 ports POE RJ45 Connector Electrical Specification:

    ParameterSpecification
    BrandGLGNET
    Operating Temperature0 to 70 ℃
    Turns Ratio1:1±3%

    Open Circuit
    Inductance (ocl)

    220uH MIN@ 100KHz/100mV with 19mA DC Bias for Channel 1, 2 ,3 , 4
    350uH MIN@ 100KHz/100mV with 8mA DC Bias, for Channel 1, 2, 3 ,4

    Insertion Loss (IL)-1.0dB MAX @ 0.3MHz – 100MHZ;

    Return Loss (RL)
    Z out = 100 OHM

    -18dB MIN @ 1MHz – 30MHZ;
    -13dB MIN @ 30MHz – 60MHZ;
    -10dB MIN @ 60MHz – 100MHZ;

    Crosstalk
    Adjacent Channels

    -30dB MIN @ 1MHz – 100MHZ
    Common Mode Rejection Ratio (CMRR)-30dB MIN @ 1 MHz – 100MHZ
    DC Current / VOL Tage Rating PSE Pins

    600 mA MAX IMUM @ 57 V DC ( Continuous )
    For PSE Channel ( P13 & P14, P15 & P16 )

    HI - POT2250 VDC @ 60 Seconds

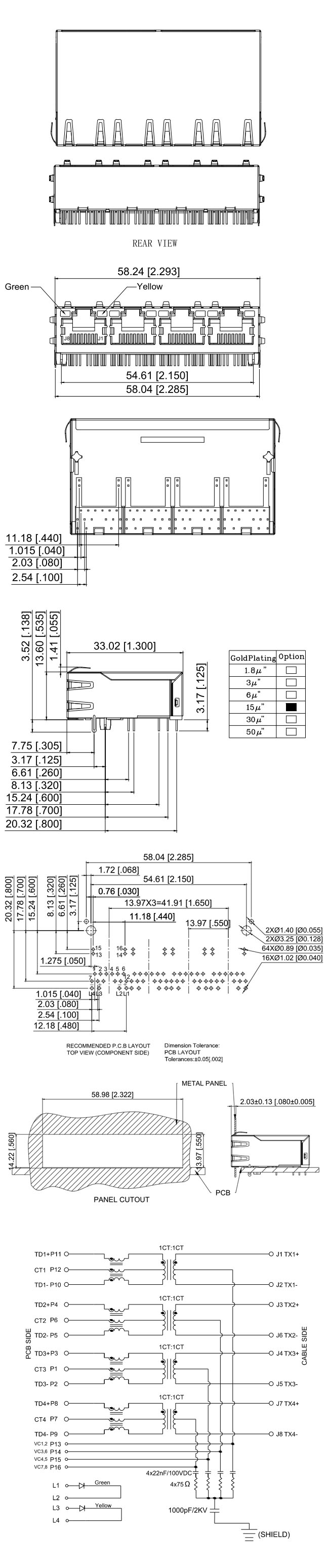

    8. 1 X 4 ports POE RJ45 Connector Mechnical Drawing
