2x6 Rj45 Multi Port 1G Magnetic UPOE+ RJ45 Connector DIP Mounting Industrial Grade

1. 2 x 6 POE RJ45 Connector Product Attributes

2. 2 x 6 POE RJ45 Connector Materials

• Housing: Class Filled PBT UL94V-0 (ROHS)
• Contact: Phosphor Bronze, 50-100 Microinches Min, Overall Ductile Nickel Underplate with selected 15 Microinches Gold At Mating Interface;
• Shield: 0.2mm Thickness With Brass
• Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
• The Part is recommended for wave soldering process peak soldering temperature is 260 ℃ MAX. 10 Seconds Max;
• Operating Temperature: -40 ℃ to +85 ℃
• Storage Temperature: -40 ℃ to +85 ℃

3. GLGNET Advantages

• 20 years experiences in Magnetic RJ45 Connector
• 1500 Employees
• 58 R&D Engineers
• 20KK Prots / Month Capacity
• ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification.
• Our products are compliant with RoHS, REACH and UL certification
• Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
• We have our Own Hardware Mold and Plastic Mold
• Has 3 LS-WEDM Machines
• Has 12 WEDM Machines and 8 CNC Machines
• Has 20 Grinding Machines and 12 Electrical Discharge Machines
• Has 30 Stamping Machines
• Has 55 Plastic Injection Machines
• Has Automatic Assembly Workshops
• Fast Response, Professional R&D Engineers, Positive Service Team, Ensure all process effective and well-organized;

4. 2 x 6 POE RJ45 Connector ( JDHA6T1001W ) Attributes:

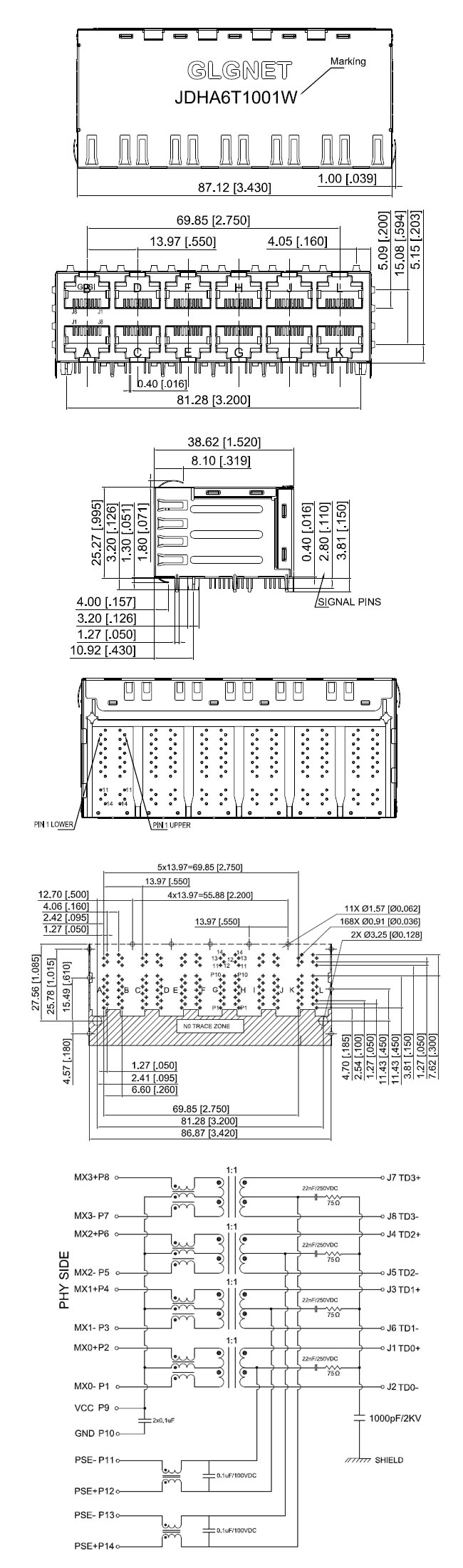

5. 2 x 6 POE RJ45 Connector Mechanical Drawing

Shenzhen GLGNET Electronics Co.,Ltd was established in 1999, with 22,000 m2 plant area, have more than 1300 employees. Our main products include Magnetic RJ45 Modular Jacks, Normal RJ45 Connectors, SFP/SFP+/SFP28/QSFP+/QSFP28 Cages, lsolated Transformers, USB/TYPE C connectors, RJ11 connectors and so on.

GLGNET now have 58 R&D engineers, we not only do OEM/ODM service, but also invest more energy to take part in customer’s new product discussing.

GLGNET have our own professional laboratory supports to do all technical detection.

GLGNET have passed the ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification.

GLGNET products are compliant with RoHS, REACH and UL certification;

GLGNET also have introduced ERP, BPM, PLM, MES and QIS office system;

GLGNET now is growing fastly and steadily, we've already created our own brand – GLGNET^®;

We have established long-term business relationship with many world famous enterprises, like HUAWEI, ZTE, FOXCONN, Delta, TP - LINK, Alpha, Nokia, NEC, HITACHI and so on.

GLGNET operates on the principle that Advocating Industry Style, Promoting Industrial Civilization.

We bring in advanced technology and equipments, adopt international management mode, to make us competitive, that increase our brand awareness and also help us to get more and more marketing share;

We will keep doing our best to enhance the international competitiveness, supply best product and service, make customer satisfied.
