Stainless Steel Cage Sfp Port Connector 2.05 Press Fit Pin Mates

GLGNET develop and produce SFP, SFP +, QSFP cages to be fully compliant with the Multi-Source Agreement (MSA) specification. Used in either copper or optical applications, the cage construction is a one-piece, stamped and formed metal to offer the best performance for EMI shielding. Our single-port cage is designed with various pin and plating options to address press-fit and solder applications. The GLGNET cage can be used for many protocols, including Fibre Channel, Gigabit Ethernet and Infiniband.

GLGNET SFP Cages Mates with that SFP Connector Transceiver, The SFP Cage can be customized with Heat Sink, Light Pipes, EMI Finger Spring, and Elastomeric Gasket;

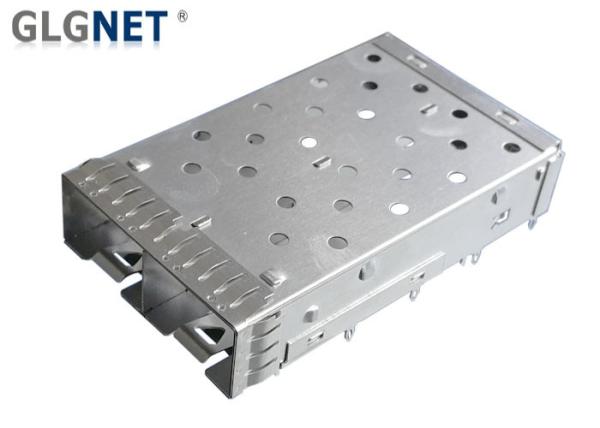

GLGNET SFP Cage Connector ( PN: 47054-00N011) is 1 x 2 Ports Ganged SFP Cage, it is used for that Small Form Factor Pluggable (SFP) Connector Transceiver, with Press Fit Pin;

press fit applications in order to reduce high volume manufacturing effort. Externally bent bezel contact springs and one-piece construction enhance EMI performance;

This GLGMET SFP Cage Material is Copper Alloy, Cage Length is 48.7mm, Width is 29.3mm, Height is 9.75mm, Press Fit Pin Length is 2.05mm;

GLGNET support to custom different SFP cage, 1 x n or 2 x n structure, different heat emission Hole, different Mount PIN, different Press fit PIN Length, with or without light pipes, with or without heat Sink, and so on.

1. Features

• Mates with SFP, SFP+, XFP, or ZENPAK transceivers

• Heat transfer windows on all SFP cage surfaces

• Enhanced transceiver kick-out springs

• Press-fit or through-hole solder leads on cages

• Connectors and cage available

• Available individually or as a kit (SFPK Series)

• Supports MSA compliant host board layouts and transceiver designs

• Convenient kit with SFP connector and cage

• 3D foot design for improved press-fit retention and contact to host board holes

• One-piece, stainless steel construction

• Low emission design via fold-back spring fingers – no openings for radiation to pass through

• Available with single or multi-port (panel mount) cages

• Simple and fast installation / removal

• Host board holes not damaged when cage is removed

2. Benifits:

3. GLGNET SFP Cage Advantages:

Press-fit Cage for Small Form Factor Pluggable (SFP) Connector Transceiver

GLGNET is offering its cage for Small Form Factor Pluggable (SFP) transceivers with the most rigid mechanical design available on the market. The cage is designed for press fit applications in order to reduce high volume manufacturing effort. Externally bent bezel contact springs and one-piece construction enhance EMI performance. As part of GLGNET's Total Transceiver Solution, the SFP Cage is your logical choice for next generation pluggable transceivers.

• Low cost
• Compact Form, Smaller than XFP, X2, EXNPAK;
• Variety Products, SFP Cages, QSFP cages, SFP plus Cages, QSFP plus Cages, SFP28 Cage, QSFP28 Cages, etc.
• GLGNET support customization: Heat Sink, Light Pipes, PIN length, Mount type, 1 x n or 2 x n, with or without Integrated Connector;

4. Applications:

by Protocol

• SONET
• Gigabit Ethnet
• Fiber Channel
• Infiniband *
• Serial data transmission

by Product

• Enterprise Storage: Server
• Networking: Router, Optical Transport Switch
• Telecommunications: Remote Radio Head, Base Station Switch

5. Customization Services

• 1 x n or 2 x n Structures
• With or without Light pipes,
• Light Pipes on Top or Buttom or Integrated
• With oe without Heat Sink
• With or without Elastomeric or metal gasket
• Cage with or without Integarted Connector
• With or Without EMI Spring Finger

6. GLGNET Advantage

• 20 years experiences in Variety Connectors
• 1500 Employees
• 58 R&D Engineers.
• 22000 square meters Factory
• We support Costom Service;
• Our products are compliant with RoHS, REACH and UL certification
• Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
• 20KK Prots / Month Capacity
• ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
• We have our Own Hardware Mold and Plastic Mold
• Has 3 LS-WEDM Machines
• Has 12 WEDM Machines and 8 CNC Machines
• Has 20 Grinding Machines and 12 Electrical Discharge Machines
• Has 30 Stamping Machines
• Has 55 Plastic Injection Machines
• Has Automatic Assembly Workshops

7. Mechnical Drawing

You can know the Demensions Details from Following Drawing
