    Light Pipes Press Mounting SFP Cage Connector 1x6 Ganged 10G Ethernet ISO Approval

    10G Ethernet SFP+ Cage with Light Pipes press mounting 1x6 Ganged SFP+ Cage


    A series of SFP+ ganged cage assemblies without integrated connectors supplied by GLGNET. The SFP small form –factor pluggable plus range of products are designed for applications in the networking, telecommunication and data centre industries. The next generation of high-speed I/O devices, supporting 10 Gbit/s Ethernet InfiniBand enhanced data rate requirements. The Press Fit copper alloy cages offer EMI spring or EMI gasket variants and are fully backward compatible with existing SFP+ optical modules and cable assemblies.


    GLGNET has Variety SFP Cage Products:


    • SFP Cages,
    • SFP + Cages
    • SFP28 Cage
    • QSFP cages
    • QSFP + Cages
    • QSFP14 Cage
    • QSFP28 Cages, etc.

    GLGNET supports SFP cage + SFP connector total solution; That SFP Cages can be combined with integrated interface connector together, you only need to insert the SFP Transceiver with Fiber Cable assembly.


    In addition, GLGNET support to custom different SFP+ cage, our Customization service as following :


    • Support to make Integrated SFP+ Connector with EMI Cages, isolated SFP Connector, or Isolated SFP+ Cages
    • The SFP+ Cage can be with 1 x n Ganged Structure, or 2 x n Stacked Structure
    • SFP+ Cage can be with different heat dissipation Hole
    • SFP+ Cage can be with Light pipes or without, Built in or on Cage top or buttom
    • SFP+ Cage can be with Heat Sink or without, and the Heat sink with different Style
    • SFP+ Cage can be with EMI Finger Spring or elastomeric Gasket
    • Different Mount Typ, Press Fit or Solder Post and the Pin length can be customized

    1. GLGNET SFP plus Cage ( 47036-00N011 ) Structure:


    Product Description

    1 x 6 Multiple Port SFP plus Cage with EMI Finger Spring and Light Pipes , without Integrated Interface

    SFP plus Cage Length56.7 mm
    SFP plus Cage Width85.95 mm
    SFP plus Cage Height14.1 mm

    SFP plus Cage Press Fit Pin Length

    2.05 mm
    SFP plus Cage Single Port Width14.0 mm
    SFP plus Cage Single Port Height8.95 mm
    Appearanceone piece Stampled and Formed Metal Cage, with heat dissipation hole
    Light PipesWith, let know the connection status
    Heat SinkWithout, can ce customized as required
    Monut TypePress Fit Mount Type
    EMI GasketWithout
    EMI Tab SpringWith, provide better EMI protection

    2. GLGNET SFP plus Cage ( 47036-00N011 ) Material :


    • Cage : 0.25 MM Thickness Copper Alloy
    • Light Pipe : Polycarbonate Color Clear
    • CLIP : Stainless Steel
    • EMI Spring Finger : Copper Alloy

    3. GLGNET SFP plus Cage ( 47036-00N011 ) Applications:


    • Servers
    • Storage
    • Routers
    • Switches
    • Telecommunications
    • Data/Communications
    • Networking
    • Fibre Channel and Gigabit Ethernet

    This is not a definitive list of applications for this product. It represents some of the more common uses.

    4. GLGNET Advantages:


    • We have our Own Hardware Mold and Plastic Mold
    • Has 3 LS-WEDM Machines
    • Has 12 WEDM Machines and 8 CNC Machines
    • Has 20 Grinding Machines and 12 Electrical Discharge Machines
    • Has 30 Stamping Machines
    • Has 55 Plastic Injection Machines
    • Has Automatic Assembly Workshops​
    • 20 years experiences in Variety Connectors
    • 1500 Employees
    • 58 R&D Engineers.
    • 22000 square meters Factory
    • 20kk ports / month Capacity
    • We support Costom Service;
    • Our products are compliant with RoHS, REACH and UL certification
    • Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
    • 20KK Prots / Month Capacity
    • ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
    • Fast Response, Professional R&D Engineers, Positive Service Team, Ensure all process effective and well-organized;

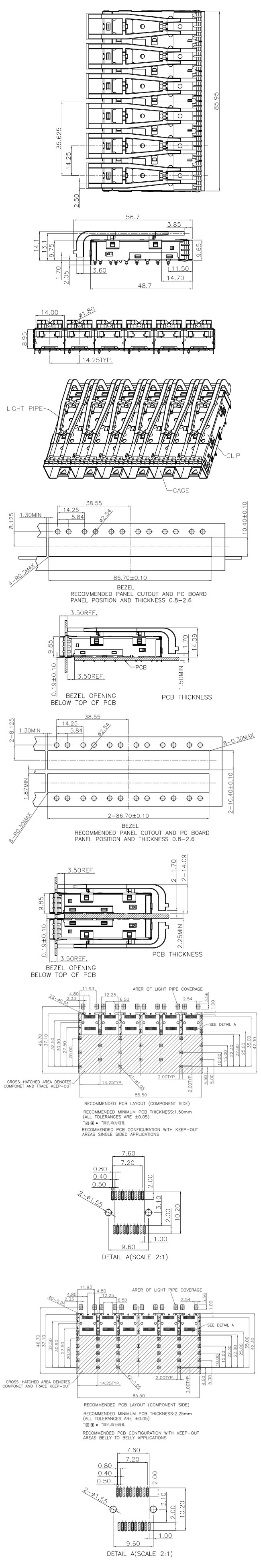

    5. Mechnical Drawing


    You can know the Demensions Details from Following Drawing
